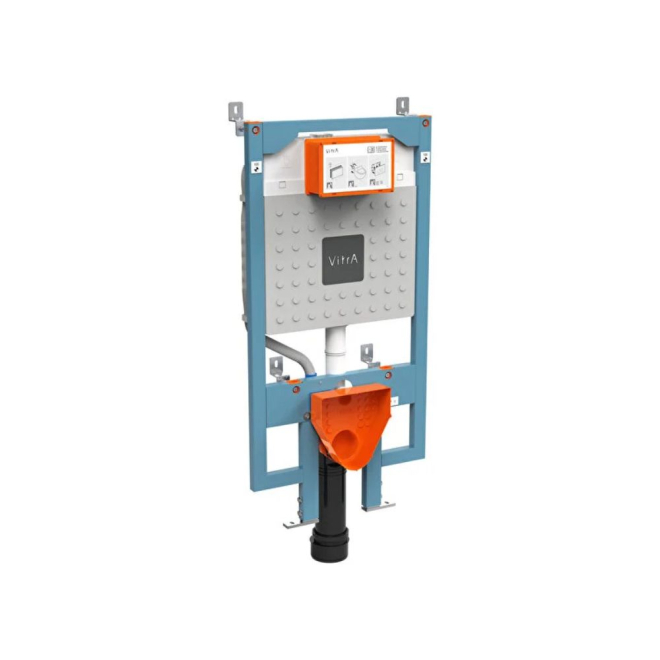

VitrA V Fix Prime Wall Hung WC Frame with Concealed Cistern 3/6L

Perfectly suited for mounting a wall hung toilet behind a stud wall using a floor and wall fixed wc frame.

Installing a Wall Hung WC creates a more spacious feel to the bathroom and makes the area around the toilet much easier to keep clean. This floor and wall fixed wc frame can be used with most wall-hung toilets availabile in the UK with a range of flush plates in various styles. The VitrA WC frame comes with an option for a front mounted flush plate (sold seperately) and includes a dual flush 3/6 litre concealed cistern within the frame itself.

The V Fix Prime wc frames have a max load resistance of 500KG when fitted, are very water efficient and quiet to use - making these wc frames an ideal fixture for most bathrooms.

V Fix Prime Toilet Frame Features:

• Concealed Cistern Included
• Dual Flush Control with 3/6 Litre Flush Option
• Dedicated Flush Plate with Multiple Style Options (not included, see dropdown above)
• Metal Frame with Floor & Wall Fixation for Added Stability

• Insulated to Help Reduce the Sound of the Flush & Potential Condensation
• Includes Junction Box and Cable Channel for the Connection of Electronic Products
• Supplied with a 10 Year Manufacturer Guarantee for Added Piece of Mind

V Fix Prime Toilet Frame Specs:

• Height: 1120mm
• Width: 555mm
• Depth: 85mm
• Water Inlet Position: Top
• Min / Max Working Pressure: 0.5 - 10 bar (recommended 1-5 bar)
• Max Load Resistance: 500kg
• WRAS Approved: Yes
• Manufacturer Guarantee: 10 Years on Frame (5 Years on Flush Plate)
• Product Code: 768-5800-01

For more info see manufacturer datasheet below;

VitrA 768-5800-01 Technical Document
